FP 5000 Refer to www. eatonelectrical. com for the latest information on this constantly

FP 5000 Refer to www. eatonelectrical. com for the latest information on this constantly evolving product

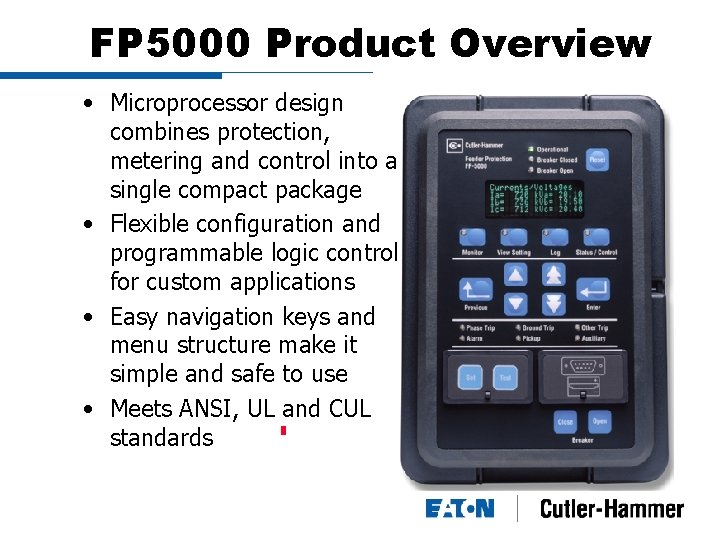

FP 5000 Product Overview • Microprocessor design combines protection, metering and control into a

FP 5000 Product Overview • Microprocessor design combines protection, metering and control into a single compact package • Flexible configuration and programmable logic control for custom applications • Easy navigation keys and menu structure make it simple and safe to use • Meets ANSI, UL and CUL standards

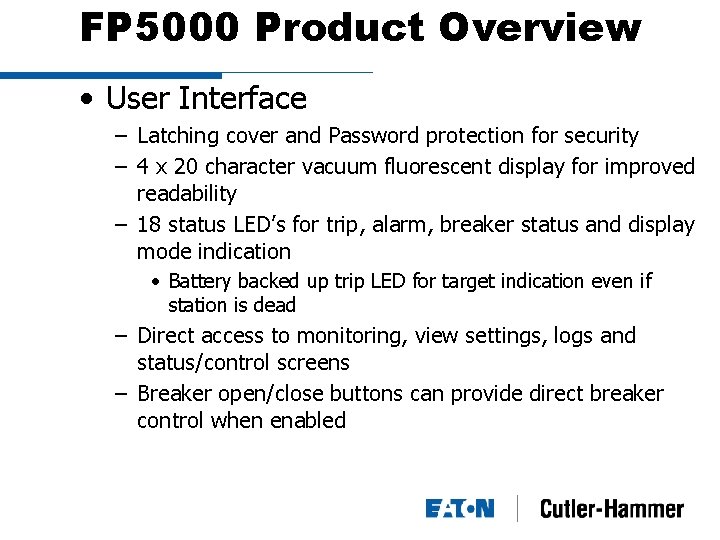

FP 5000 Product Overview • User Interface – Latching cover and Password protection for

FP 5000 Product Overview • User Interface – Latching cover and Password protection for security – 4 x 20 character vacuum fluorescent display for improved readability – 18 status LED's for trip, alarm, breaker status and display mode indication • Battery backed up trip LED for target indication even if station is dead – Direct access to monitoring, view settings, logs and status/control screens – Breaker open/close buttons can provide direct breaker control when enabled

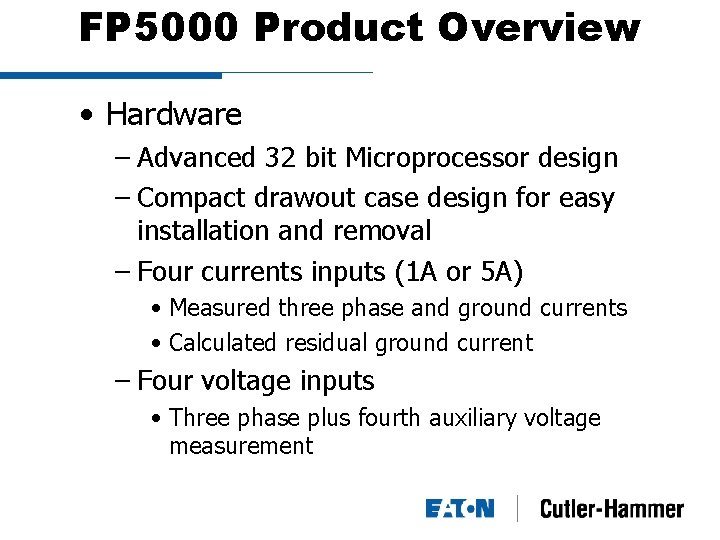

FP 5000 Product Overview • Hardware – Advanced 32 bit Microprocessor design – Compact

FP 5000 Product Overview • Hardware – Advanced 32 bit Microprocessor design – Compact drawout case design for easy installation and removal – Four currents inputs (1 A or 5 A) • Measured three phase and ground currents • Calculated residual ground current – Four voltage inputs • Three phase plus fourth auxiliary voltage measurement

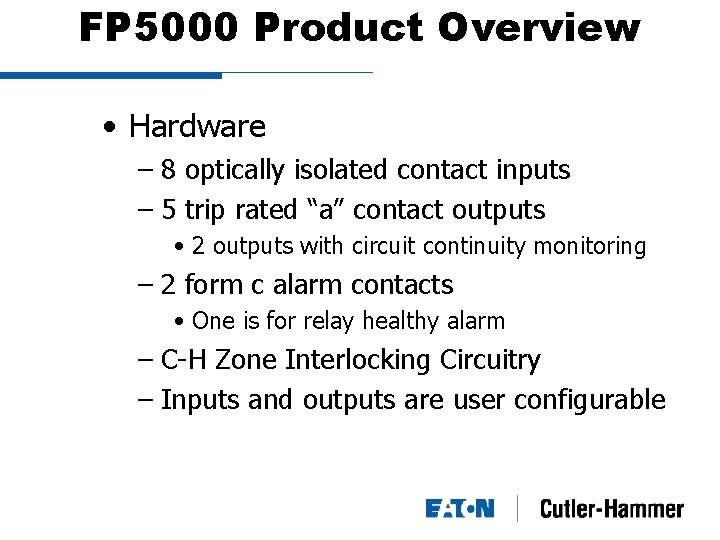

FP 5000 Product Overview • Hardware – 8 optically isolated contact inputs – 5

FP 5000 Product Overview • Hardware – 8 optically isolated contact inputs – 5 trip rated "a" contact outputs • 2 outputs with circuit continuity monitoring – 2 form c alarm contacts • One is for relay healthy alarm – C-H Zone Interlocking Circuitry – Inputs and outputs are user configurable

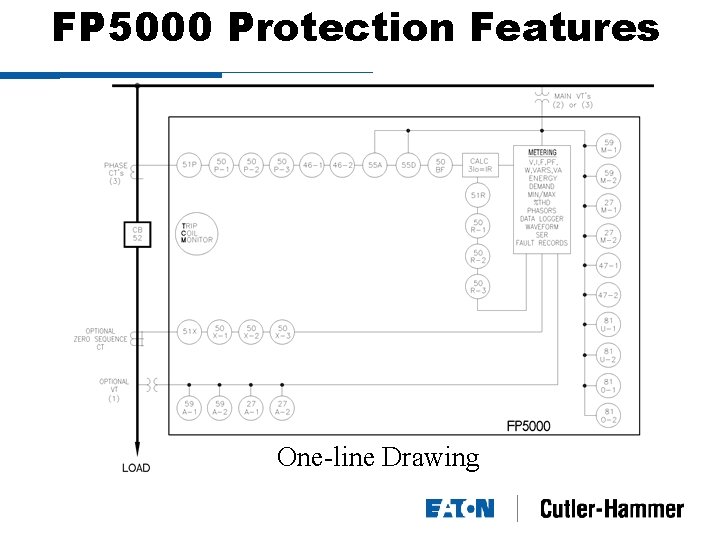

FP 5000 Protection Features One-line Drawing

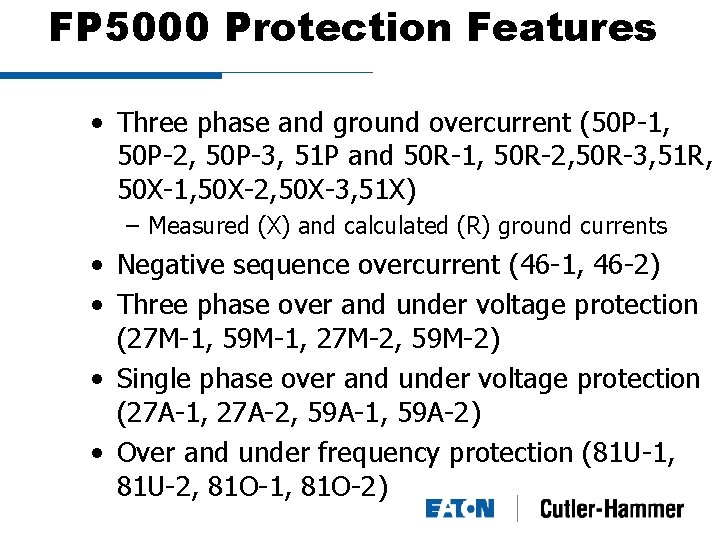

FP 5000 Protection Features • Three phase and ground overcurrent (50 P-1, 50 P-2,

FP 5000 Protection Features • Three phase and ground overcurrent (50 P-1, 50 P-2, 50 P-3, 51 P and 50 R-1, 50 R-2, 50 R-3, 51 R, 50 X-1, 50 X-2, 50 X-3, 51 X) – Measured (X) and calculated (R) ground currents • Negative sequence overcurrent (46 -1, 46 -2) • Three phase over and under voltage protection (27 M-1, 59 M-1, 27 M-2, 59 M-2) • Single phase over and under voltage protection (27 A-1, 27 A-2, 59 A-1, 59 A-2) • Over and under frequency protection (81 U-1, 81 U-2, 81 O-1, 81 O-2)

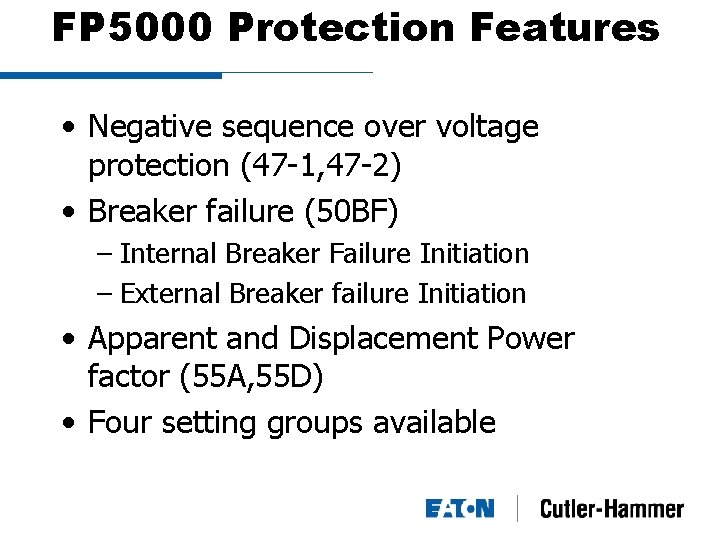

FP 5000 Protection Features • Negative sequence over voltage protection (47 -1, 47 -2)

FP 5000 Protection Features • Negative sequence over voltage protection (47 -1, 47 -2) • Breaker failure (50 BF) – Internal Breaker Failure Initiation – External Breaker failure Initiation • Apparent and Displacement Power factor (55 A, 55 D) • Four setting groups available

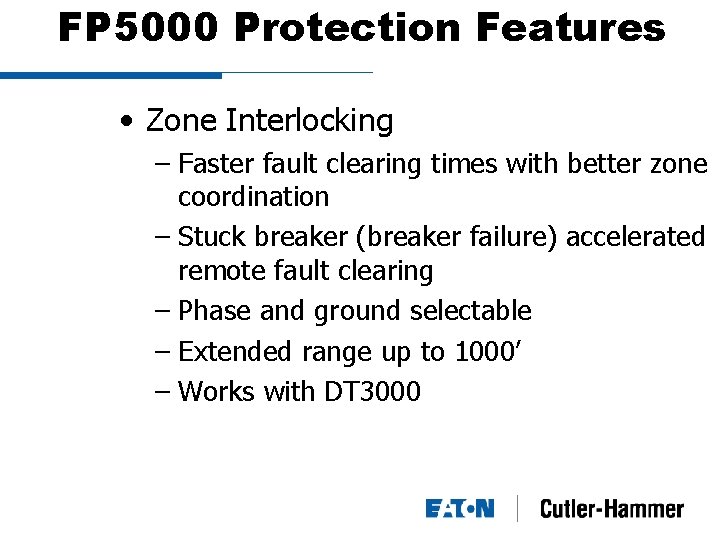

FP 5000 Protection Features • Zone Interlocking – Faster fault clearing times with better

FP 5000 Protection Features • Zone Interlocking – Faster fault clearing times with better zone coordination – Stuck breaker (breaker failure) accelerated remote fault clearing – Phase and ground selectable – Extended range up to 1000' – Works with DT 3000

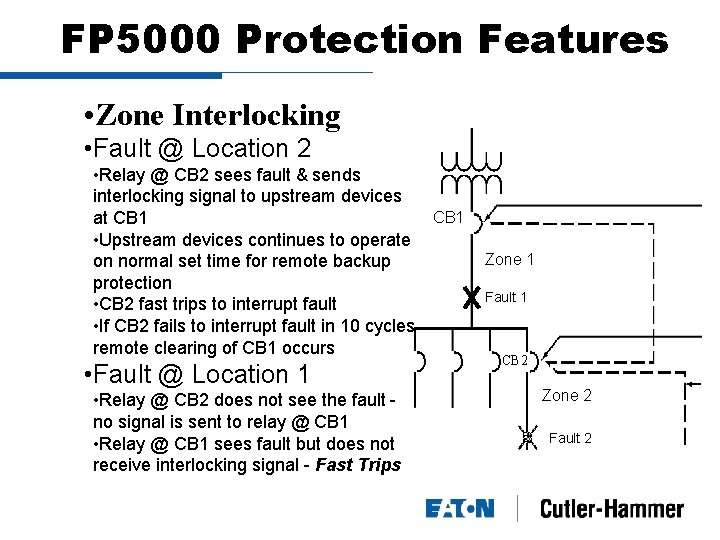

FP 5000 Protection Features • Zone Interlocking • Fault @ Location 2 • Relay

FP 5000 Protection Features • Zone Interlocking • Fault @ Location 2 • Relay @ CB 2 sees fault & sends interlocking signal to upstream devices CB 1 at CB 1 • Upstream devices continues to operate on normal set time for remote backup protection • CB 2 fast trips to interrupt fault • If CB 2 fails to interrupt fault in 10 cycles remote clearing of CB 1 occurs • Fault @ Location 1 • Relay @ CB 2 does not see the fault no signal is sent to relay @ CB 1 • Relay @ CB 1 sees fault but does not receive interlocking signal - Fast Trips Zone 1 Fault 1 CB 2 Zone 2 Fault 2

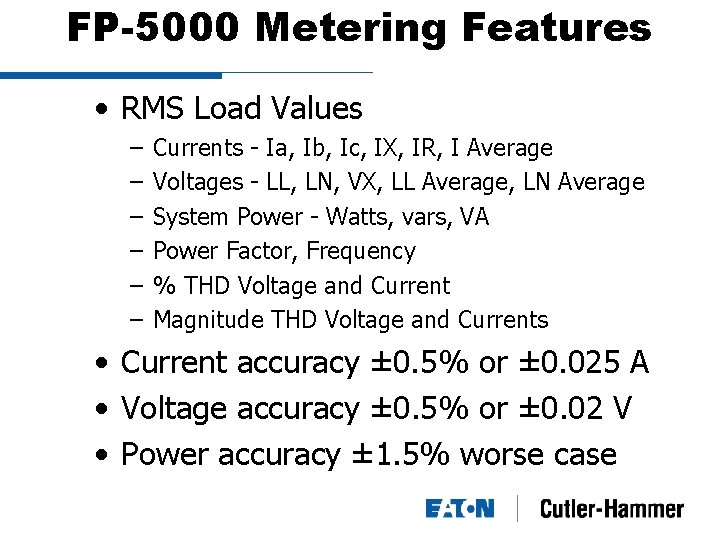

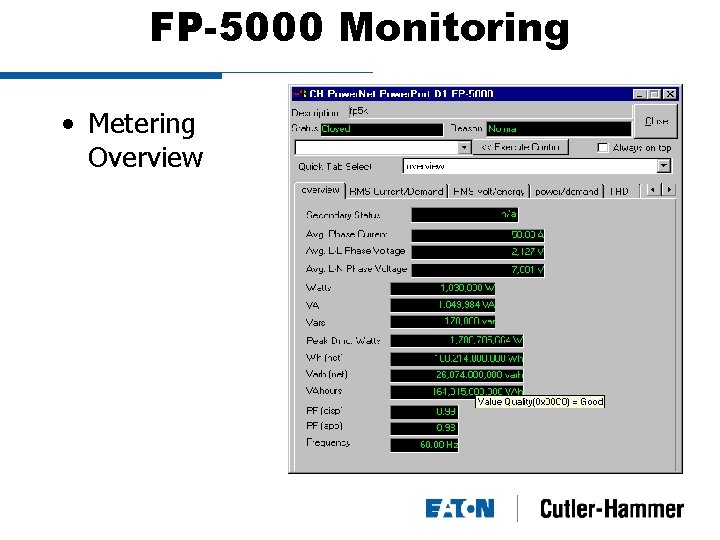

FP-5000 Metering Features • RMS Load Values – – – Currents - Ia, Ib,

FP-5000 Metering Features • RMS Load Values – – – Currents - Ia, Ib, Ic, IX, IR, I Average Voltages - LL, LN, VX, LL Average, LN Average System Power - Watts, vars, VA Power Factor, Frequency % THD Voltage and Current Magnitude THD Voltage and Currents • Current accuracy ± 0. 5% or ± 0. 025 A • Voltage accuracy ± 0. 5% or ± 0. 02 V • Power accuracy ± 1. 5% worse case

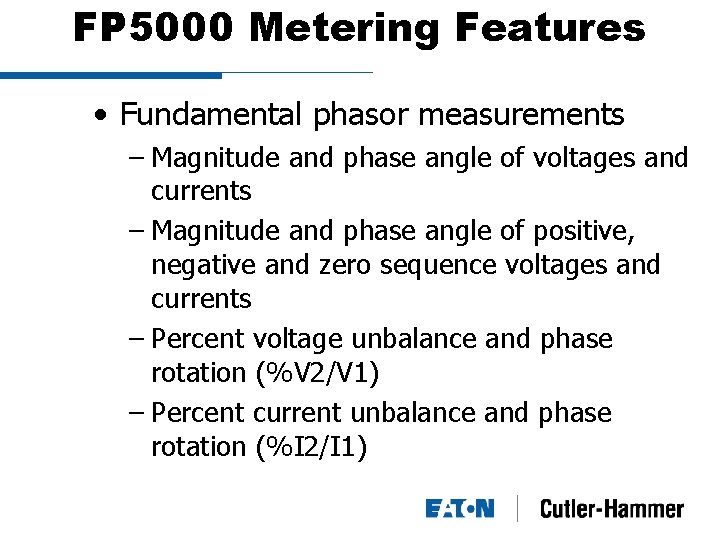

FP 5000 Metering Features • Fundamental phasor measurements – Magnitude and phase angle of

FP 5000 Metering Features • Fundamental phasor measurements – Magnitude and phase angle of voltages and currents – Magnitude and phase angle of positive, negative and zero sequence voltages and currents – Percent voltage unbalance and phase rotation (%V 2/V 1) – Percent current unbalance and phase rotation (%I 2/I 1)

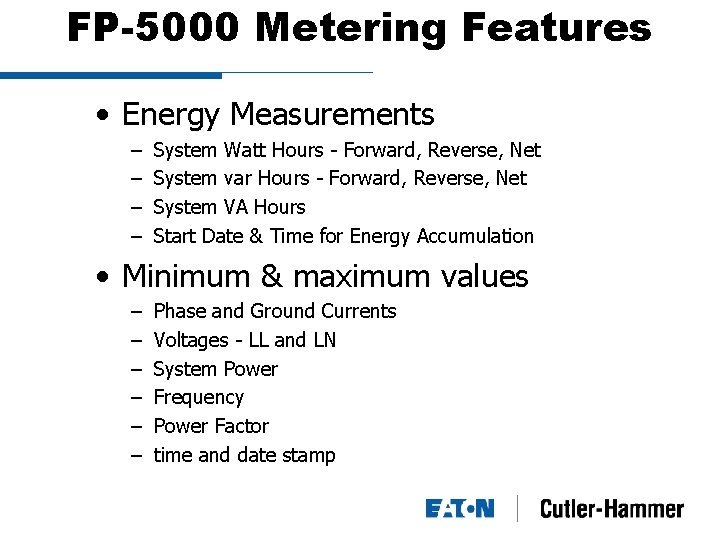

FP-5000 Metering Features • Energy Measurements – – System Watt Hours - Forward, Reverse,

FP-5000 Metering Features • Energy Measurements – – System Watt Hours - Forward, Reverse, Net System var Hours - Forward, Reverse, Net System VA Hours Start Date & Time for Energy Accumulation • Minimum & maximum values – – – Phase and Ground Currents Voltages - LL and LN System Power Frequency Power Factor time and date stamp

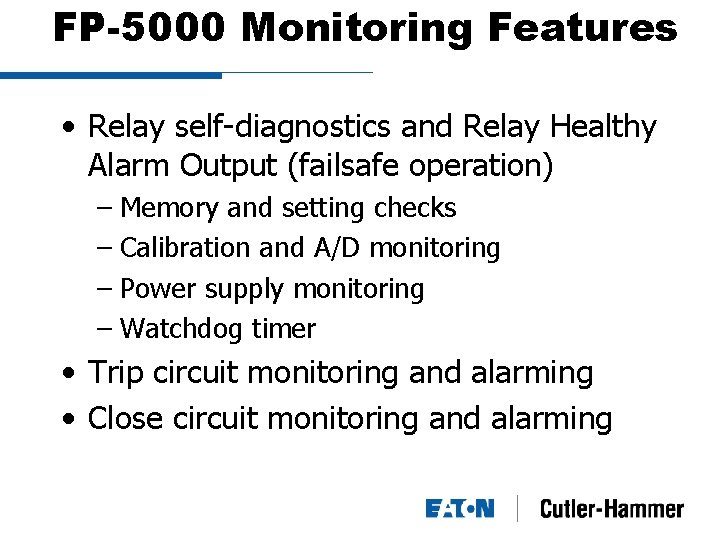

FP-5000 Monitoring Features • Relay self-diagnostics and Relay Healthy Alarm Output (failsafe operation) –

FP-5000 Monitoring Features • Relay self-diagnostics and Relay Healthy Alarm Output (failsafe operation) – Memory and setting checks – Calibration and A/D monitoring – Power supply monitoring – Watchdog timer • Trip circuit monitoring and alarming • Close circuit monitoring and alarming

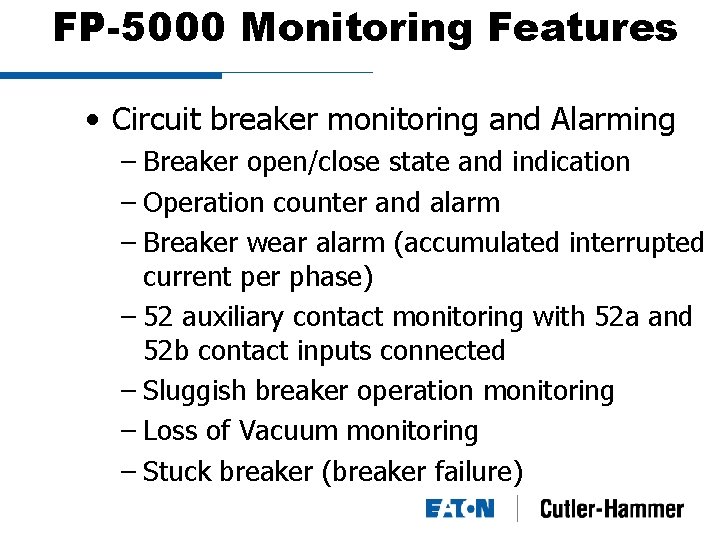

FP-5000 Monitoring Features • Circuit breaker monitoring and Alarming – Breaker open/close state and

FP-5000 Monitoring Features • Circuit breaker monitoring and Alarming – Breaker open/close state and indication – Operation counter and alarm – Breaker wear alarm (accumulated interrupted current per phase) – 52 auxiliary contact monitoring with 52 a and 52 b contact inputs connected – Sluggish breaker operation monitoring – Loss of Vacuum monitoring – Stuck breaker (breaker failure)

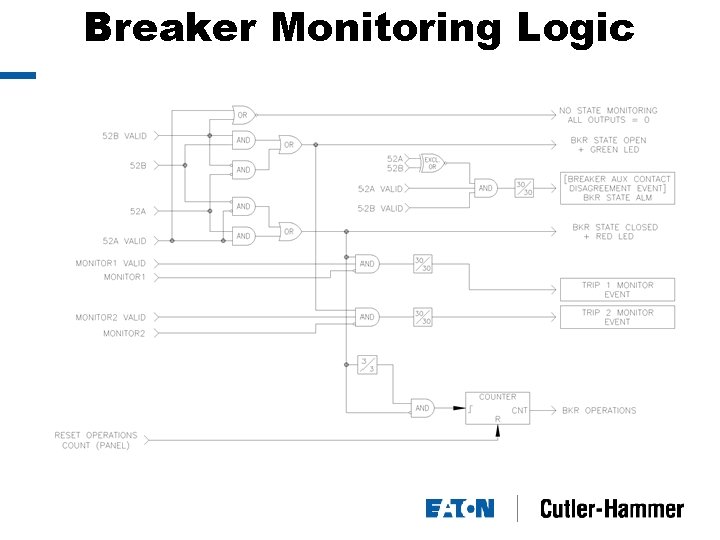

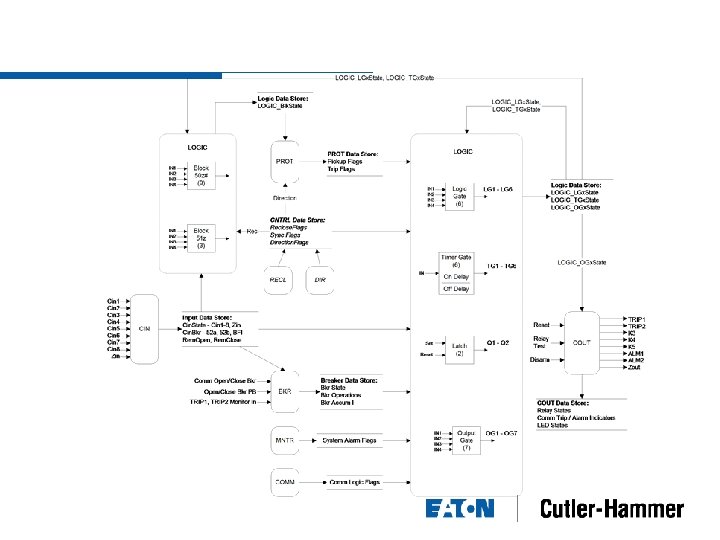

Breaker Monitoring Logic

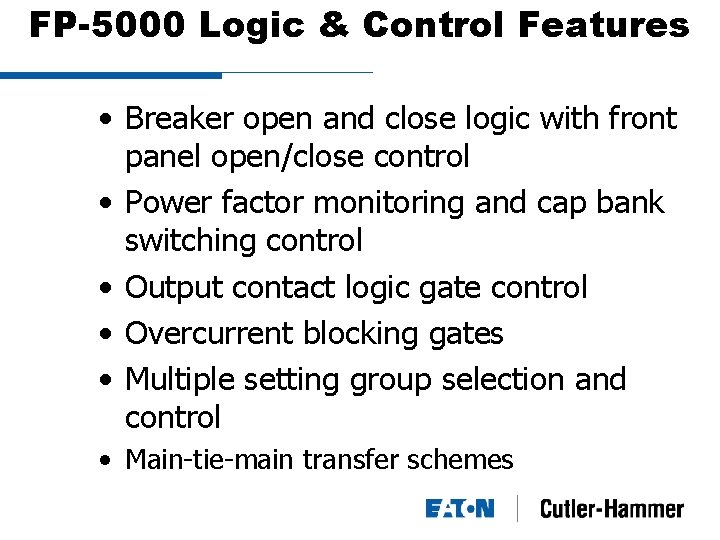

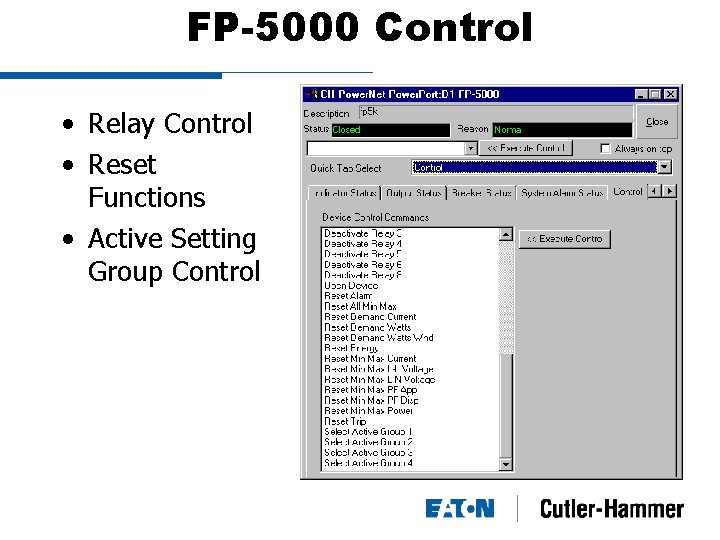

FP-5000 Logic & Control Features • Breaker open and close logic with front panel

FP-5000 Logic & Control Features • Breaker open and close logic with front panel open/close control • Power factor monitoring and cap bank switching control • Output contact logic gate control • Overcurrent blocking gates • Multiple setting group selection and control • Main-tie-main transfer schemes

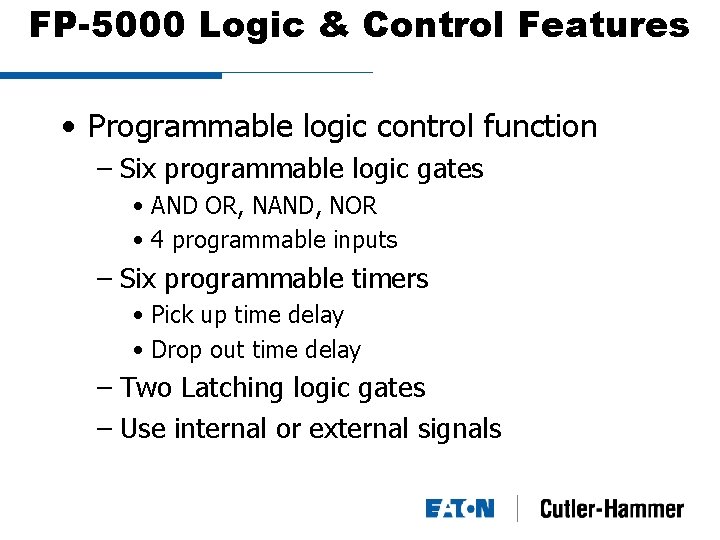

FP-5000 Logic & Control Features • Programmable logic control function – Six programmable logic

FP-5000 Logic & Control Features • Programmable logic control function – Six programmable logic gates • AND OR, NAND, NOR • 4 programmable inputs – Six programmable timers • Pick up time delay • Drop out time delay – Two Latching logic gates – Use internal or external signals

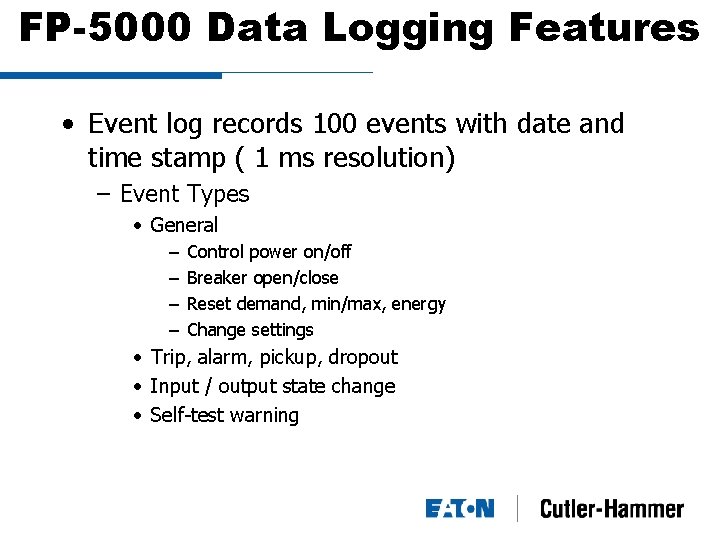

FP-5000 Data Logging Features • Event log records 100 events with date and time

FP-5000 Data Logging Features • Event log records 100 events with date and time stamp ( 1 ms resolution) – Event Types • General – – Control power on/off Breaker open/close Reset demand, min/max, energy Change settings • Trip, alarm, pickup, dropout • Input / output state change • Self-test warning

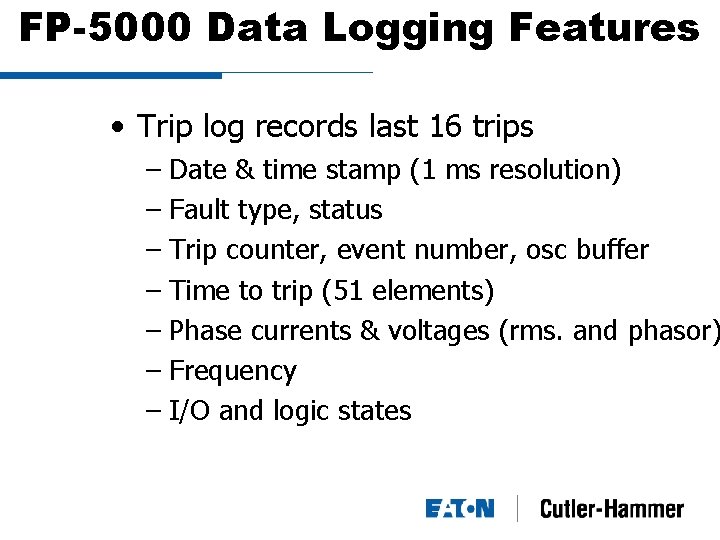

FP-5000 Data Logging Features • Trip log records last 16 trips – Date &

FP-5000 Data Logging Features • Trip log records last 16 trips – Date & time stamp (1 ms resolution) – Fault type, status – Trip counter, event number, osc buffer – Time to trip (51 elements) – Phase currents & voltages (rms. and phasor) – Frequency – I/O and logic states

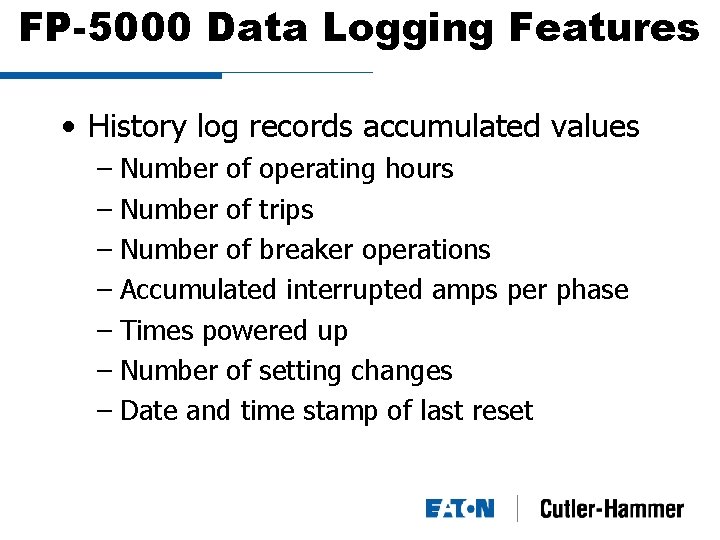

FP-5000 Data Logging Features • History log records accumulated values – Number of operating

FP-5000 Data Logging Features • History log records accumulated values – Number of operating hours – Number of trips – Number of breaker operations – Accumulated interrupted amps per phase – Times powered up – Number of setting changes – Date and time stamp of last reset

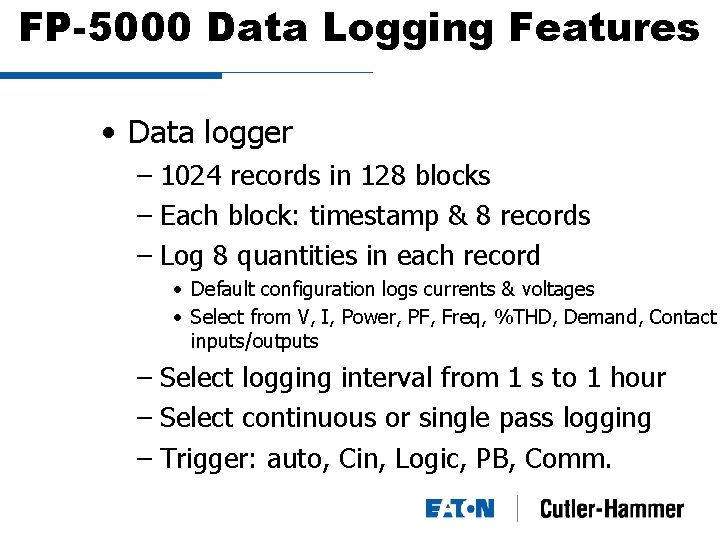

FP-5000 Data Logging Features • Data logger – 1024 records in 128 blocks –

FP-5000 Data Logging Features • Data logger – 1024 records in 128 blocks – Each block: timestamp & 8 records – Log 8 quantities in each record • Default configuration logs currents & voltages • Select from V, I, Power, PF, Freq, %THD, Demand, Contact inputs/outputs – Select logging interval from 1 s to 1 hour – Select continuous or single pass logging – Trigger: auto, Cin, Logic, PB, Comm.

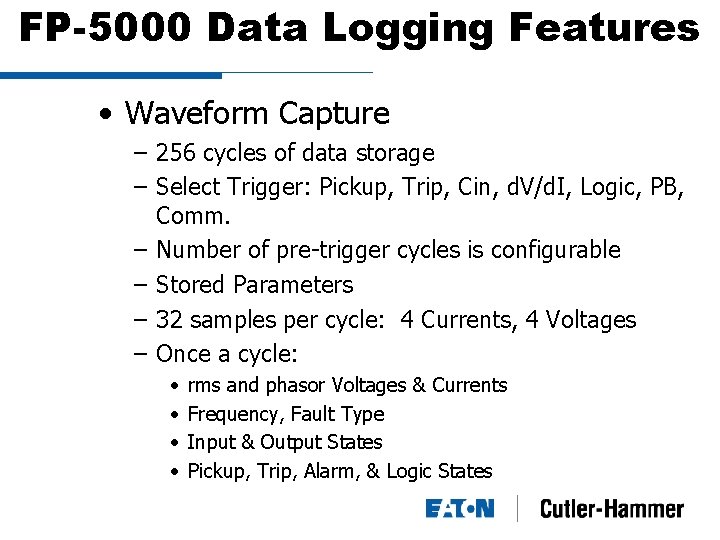

FP-5000 Data Logging Features • Waveform Capture – 256 cycles of data storage –

FP-5000 Data Logging Features • Waveform Capture – 256 cycles of data storage – Select Trigger: Pickup, Trip, Cin, d. V/d. I, Logic, PB, Comm. – Number of pre-trigger cycles is configurable – Stored Parameters – 32 samples per cycle: 4 Currents, 4 Voltages – Once a cycle: • • rms and phasor Voltages & Currents Frequency, Fault Type Input & Output States Pickup, Trip, Alarm, & Logic States

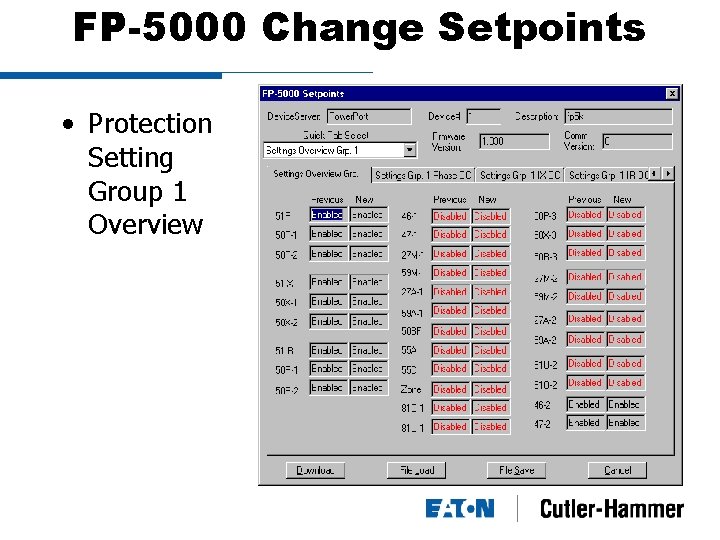

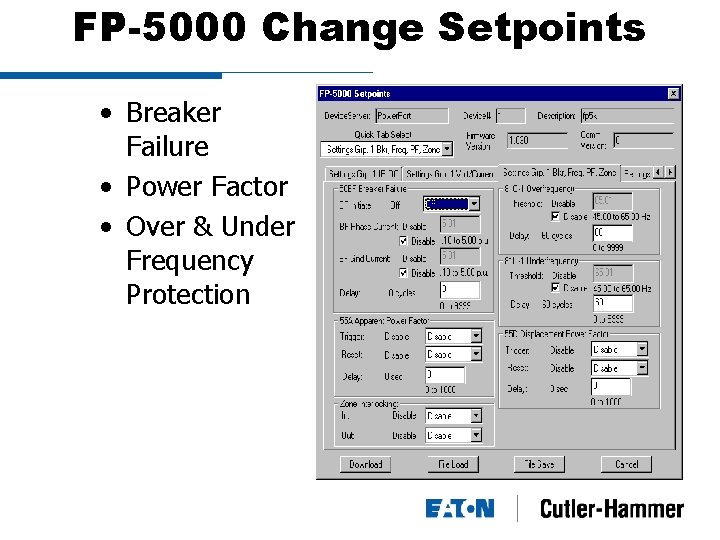

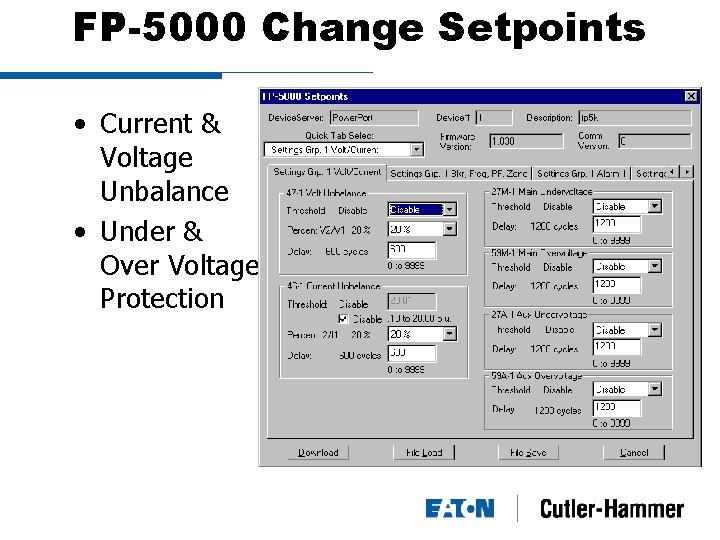

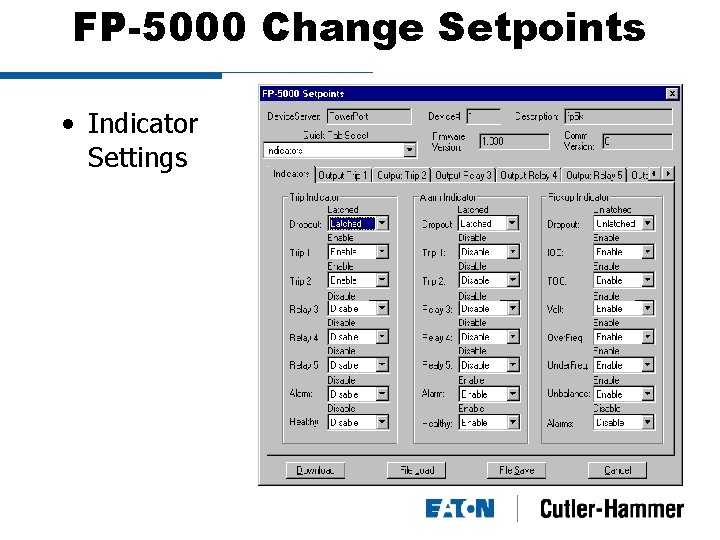

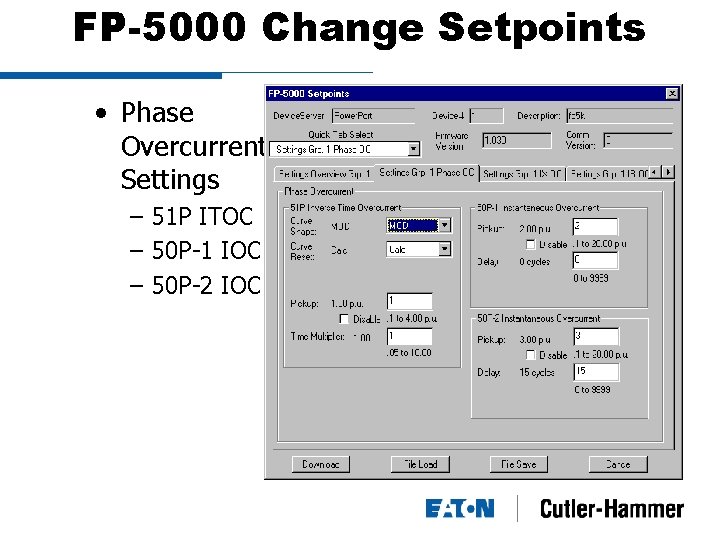

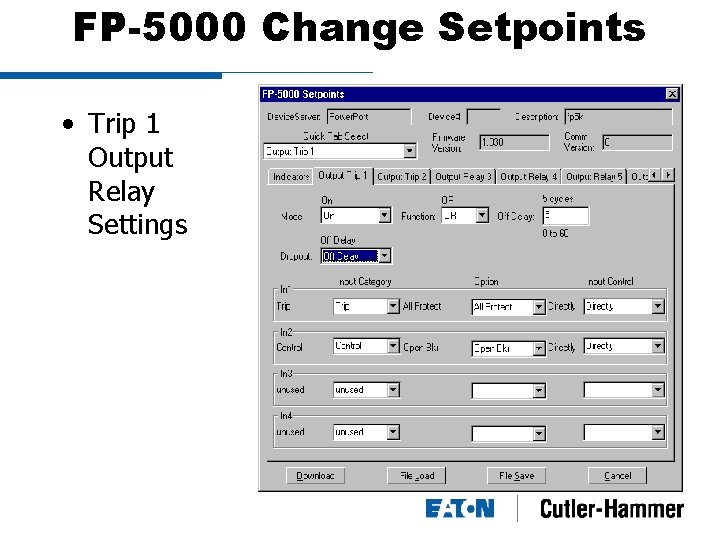

FP-5000 Change Setpoints • Protection Setting Group 1 Overview
